In modern fluid management, precision and reliability are non-negotiable. Whether you are engineering high-precision office supply components or high-volume consumer packaging, the components managing your fluid pathways dictate the success of your final product. Among the most effective solutions for a valve with flow control, the elastomeric duckbill check valve stands out as a premier choice for engineers seeking simplicity, durability, and high performance.

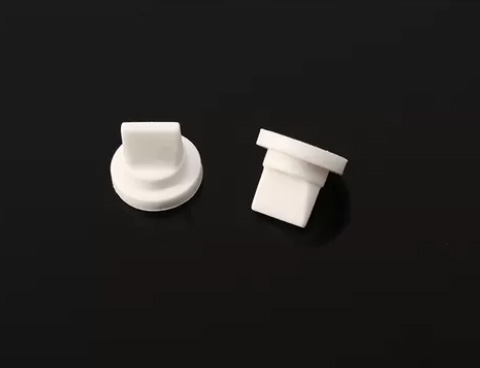

At its core, a duckbill valve is a compact, single-piece one-way check valve engineered to facilitate forward flow while preventing backflow without the need for complex mechanical parts, springs, or hinges. The mechanism relies entirely on the natural elasticity of the premium silicone material.
Under normal conditions, the "lips" of the duck bill remain tightly sealed due to their inherent structural design. When forward pressure is applied, the lips flex open to allow fluid, gas, or viscous paste to pass through. As soon as the pressure is equalized or back pressure occurs, the elastomer naturally reverts to its closed position, creating a reliable, leak-proof seal. This pressure-differential mechanism completely eliminates common failure points found in traditional mechanical valves.
Duck valves are widely preferred over mechanical alternatives in demanding environments due to their superior structural tolerance .Below is a technical comparison for precision applications:
| Feature | Elastomeric Duckbill Valve | Traditional Mechanical Valve |
| Opening Pressure | Extremely low, fully customizable | Often high and restrictive |
| Mechanical Parts | None (Single-piece elastomer design) | Multiple (Springs, balls, seats, hinges) |
| Particle Compliance | High (Deforms around debris/viscous media) | Low (Prone to clogging, jamming, or leaking) |
| Internal Volume | Minimal (Reduces dead space and fluid stagnation) | Significant |
| Reliability | Long cycle life with zero mechanical wear | High risk of mechanical wear over time |
As showcased in our standard product catalog, Hopewell's precision silicone valves are custom-engineered for specific industrial and consumer applications where fluid isolation is critical. Our off-the-shelf and customizable configurations include:
7.6mm Backflow Preventer (Precision Micro-Fluidics)
Specifications: Outer Diameter: 7.6mm | Slit Size: 2.2mm
Primary Application: Specifically optimized for ink cartridges and precision printing hardware, preventing air ingestion and ink leakage while maintaining stable structural pressure.
7.8mm One Way Valve (Consumer Hydration Systems)
Specifications: Outer Diameter: 7.8mm | Slit Size: 4mm
Primary Application: Ideal as a high-performance water check valve for premium water bottles, sports flasks, and travel mugs, offering a seamless drinking experience with zero accidental spills.
12.5mm Non Return Valve (High-Viscosity Dispensing)
Specifications: Outer Diameter: 12.5mm | Slit Size: 4.1mm
Primary Application: Engineered as a robust water valve and dispensing solution for viscous personal care products, such as liquid toothpaste pumps, lotions, and cosmetic packaging, ensuring clean cut-offs without dripping.
Selecting the optimal valve is not just about choosing the right material; it is about how smoothly the component integrates into your product housing. At Hopewell, we provide various mounting configurations to suit different housing geometries:
Flanged: Features an outer flange for secure mechanical retention in pressurized setups.
Push-in: Ideal for rapid, automated assembly in plastic or metal housings using a friction-fit design.
Sleeved: Provides a streamlined, inline profile, perfect for compact assemblies where space is at a premium.
At Hopewell, we do not just supply standard parts; we provide fully engineered manufacturing solutions. With over 15 years of experience in high-precision silicone manufacturing and LSR (Liquid Silicone Rubber) injection molding, we understand the exact technical nuances required for flawless fluid control.
From initial concept development and slit-size calibration to automated mass production, our team is dedicated to solving your complex sealing challenges. We are proud to operate a 20,000 m² facility featuring Class 100,000 cleanroom production, ensuring that every single valve meets the highest international quality standards.
Ready to optimize your fluid system? Contact our engineering experts today to discuss your custom silicone project and discover how our precision duckbill solutions can enhance your product's performance.
